A Singapore playground, in miniature

Toa Payoh
Dragon.

The bold head. The winding walkway.
The loops all the way round.

A stylized, 3D-printable model inspired by the Toa Payoh Dragon Playground. Rounded hoops and separate colour inserts give this miniature its own character.

Explore the v03 print kit

v03 print candidate · physical printing and fit are untested

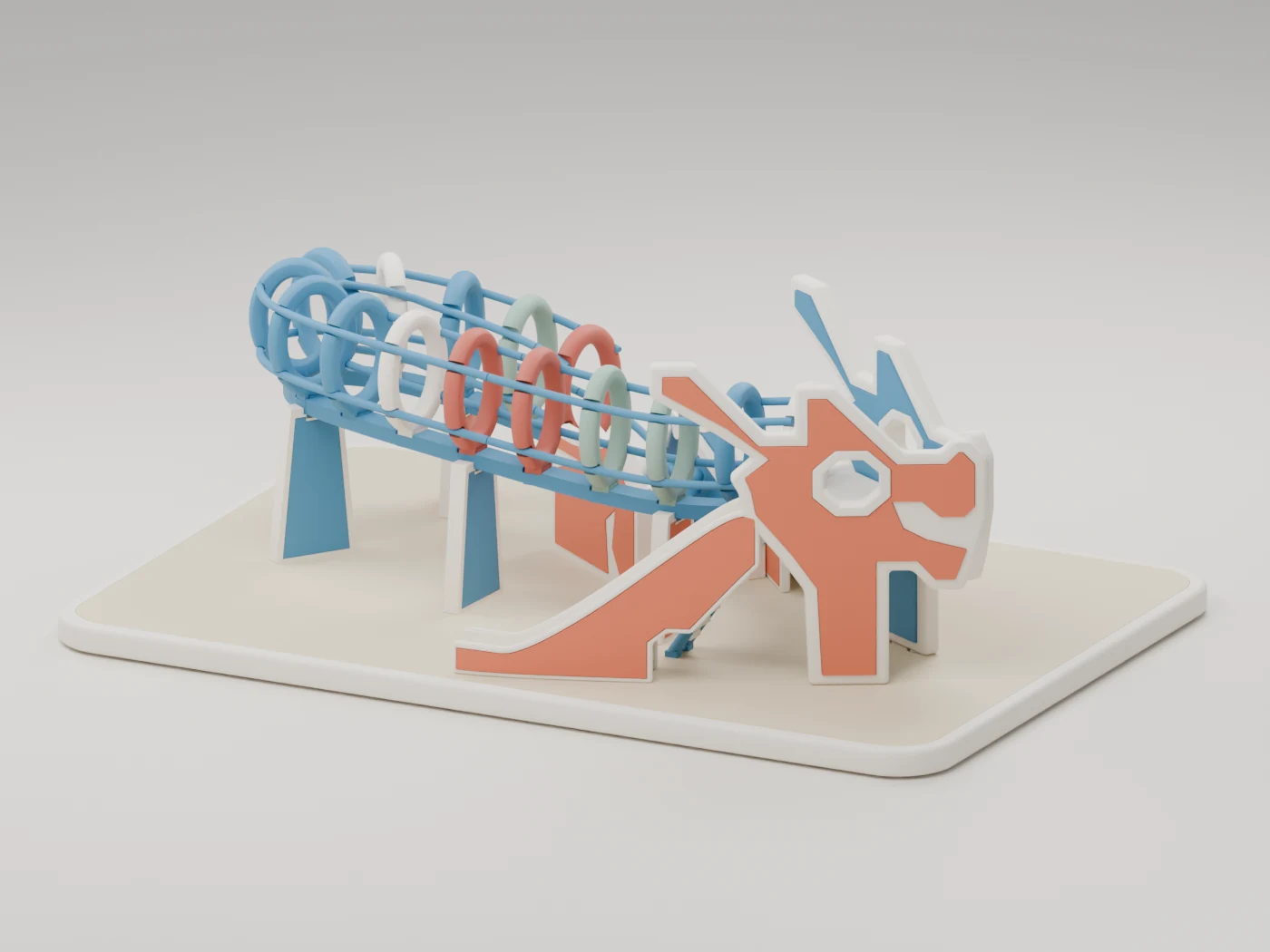

Actual CAD render of the miniature dragon playground with an orange dragon head and slide, blue rails and a curved body of colourful hoops — The complete dragon v03 CAD render · not a physical print

15 + 3closed hoops + open tail rungs

94production parts

06separate print colours

01 / Follow the curve

A dragon that
takes the long way round.

A curling path, an unmistakable head, and a rhythm of coloured ribs. The silhouette takes its cue from the original; the miniature is a stylized interpretation.

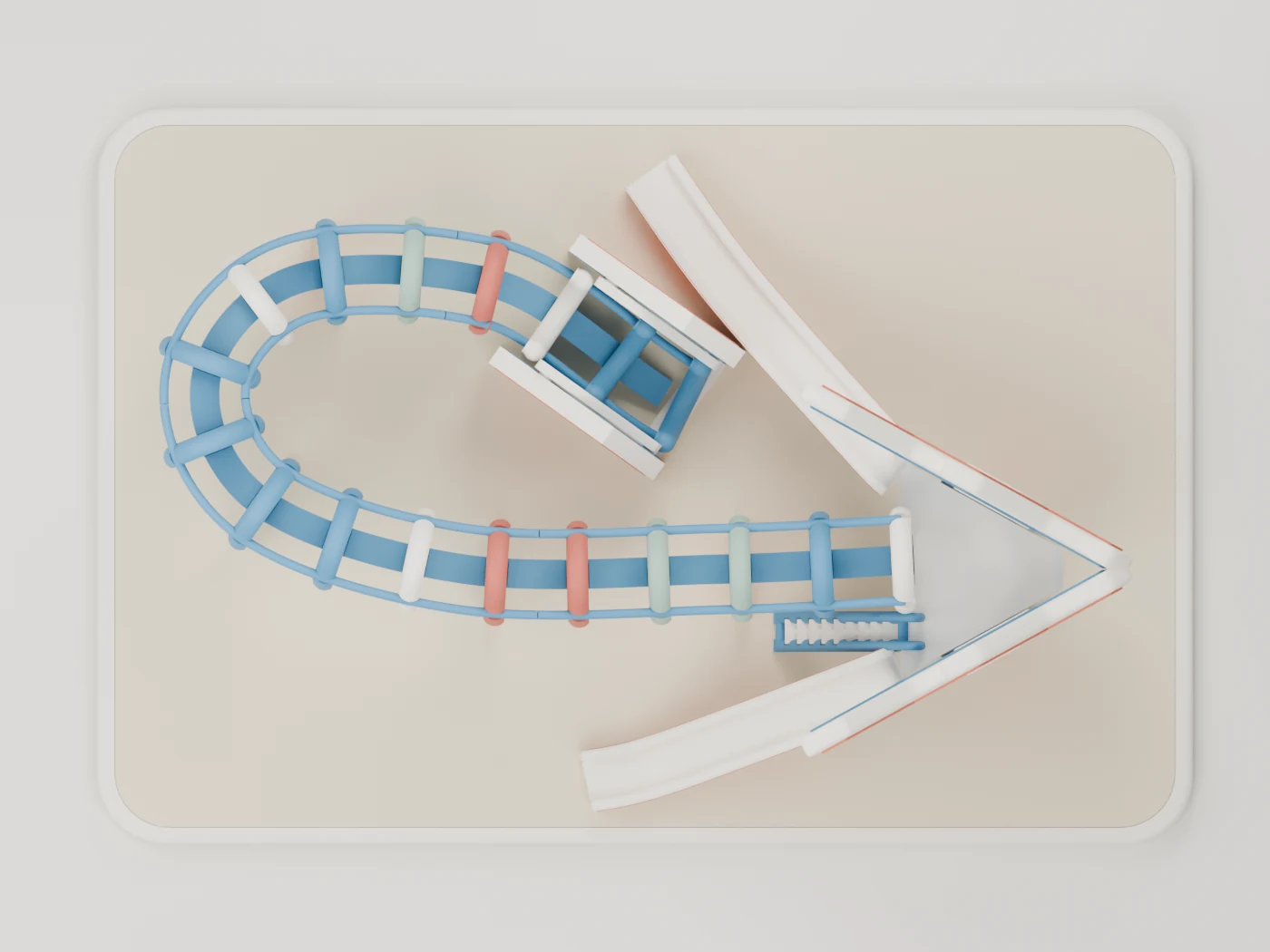

Top-down CAD view showing the blue walkway curling around the base between the dragon head, two slides and tail — The route from aboveActual v03 CAD render

The head & slides

Orange inlays sit inside cream outlines. Two sculpted slides descend from the head platform.

The loop walkway

Fifteen puffy closed hoops follow the curved blue rails. Three low open rungs finish the tail.

Six colours, separate parts

Cream, orange, blue, sage, red and sand. Print the colours separately, then assemble with glue. No AMS required.

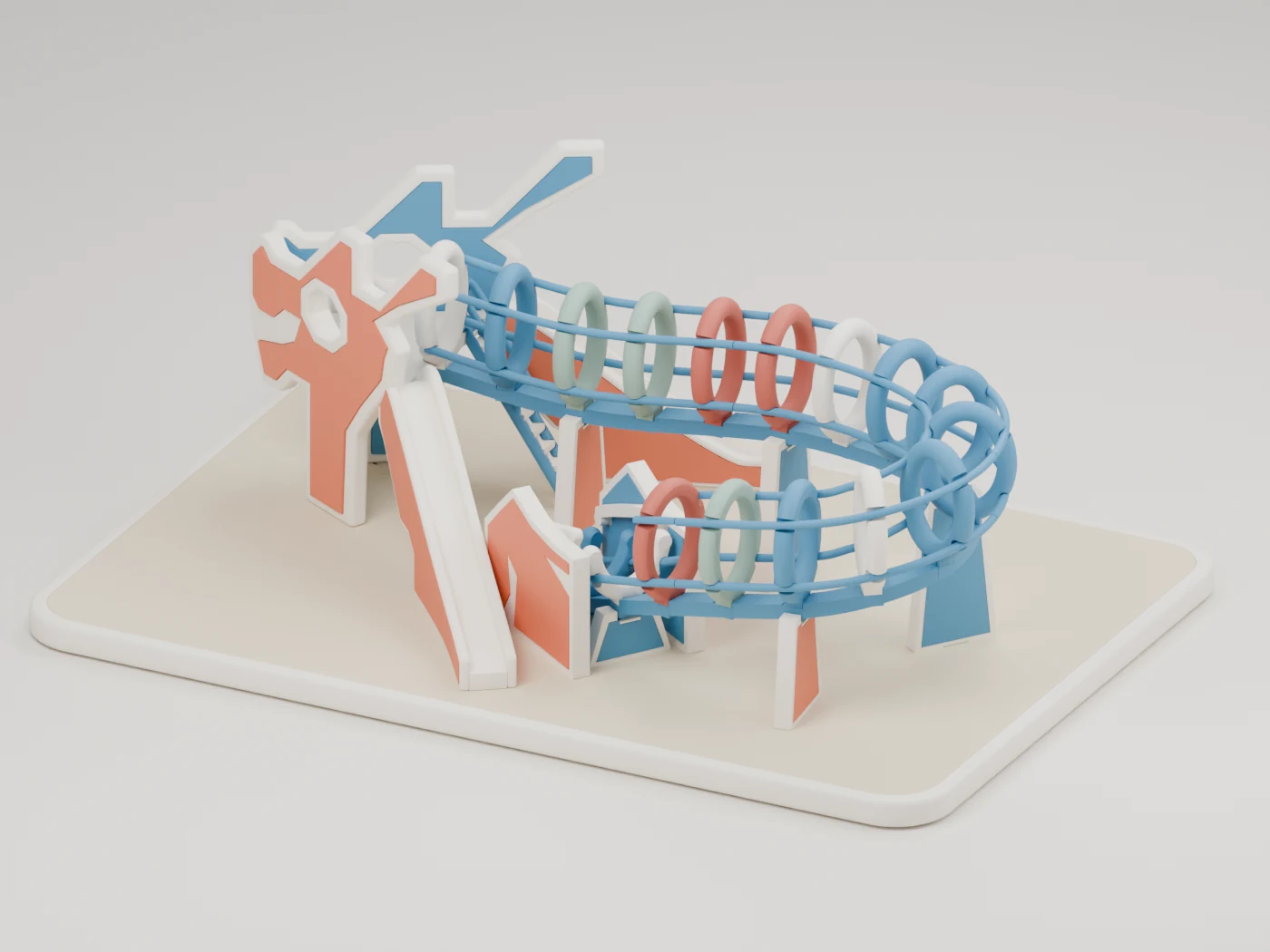

Opposite CAD view of the assembled model showing its dragon head, slides, piers and curling hoop walkway — Around the other sideActual v03 CAD render

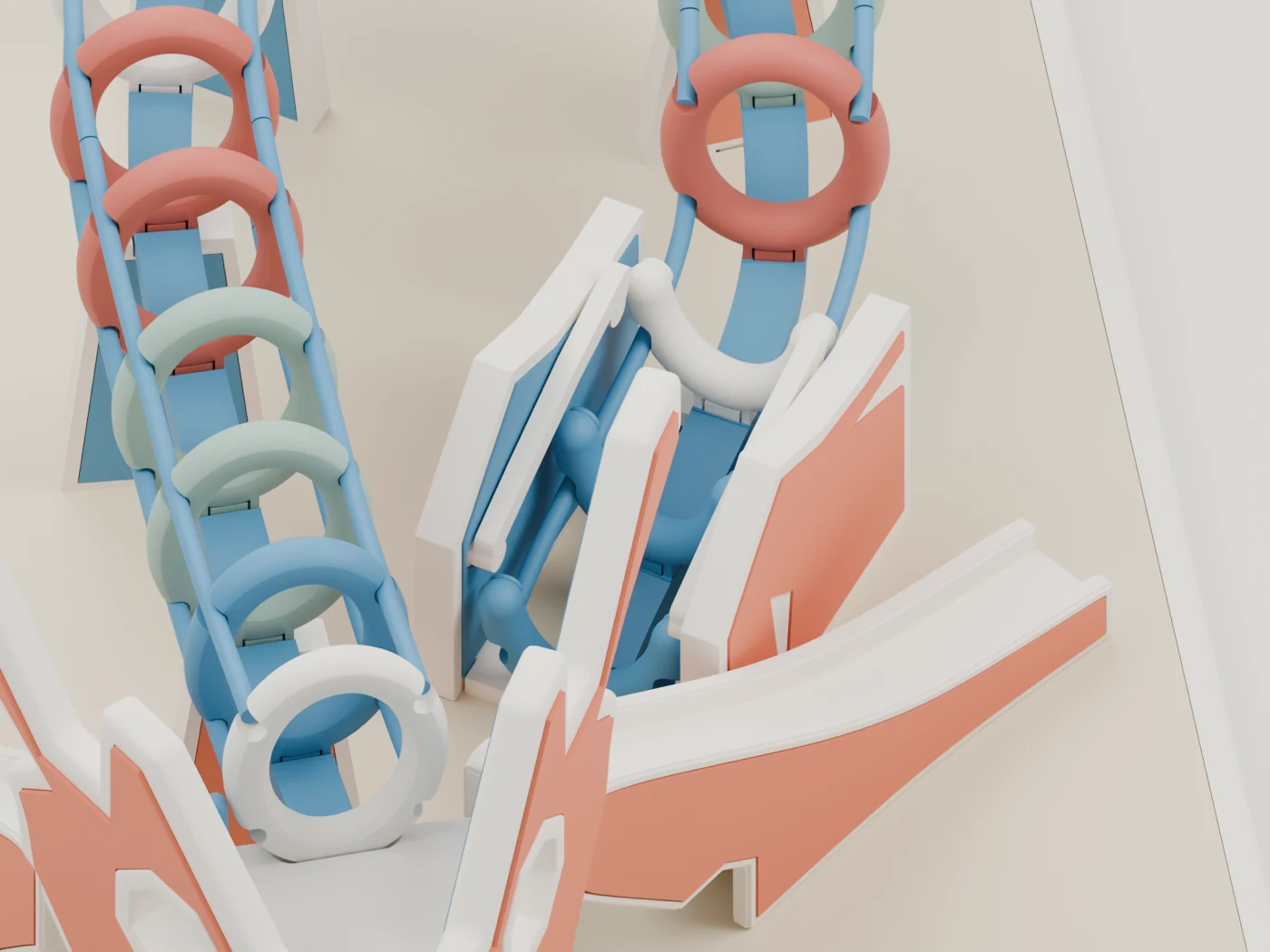

CAD close-up showing the colourful closed hoops, open tail rungs, rails and slide — Where the loops meet the tailActual v03 CAD render

All four images show the actual v03 digital model. They do not establish physical print quality, joint fit or support removal.

02 / From curves to components

Start small.
Then build the dragon.

The v03 kit is ready for physical fit testing. Try the representative joints before committing to the full model.

Inside the v03 kit

94: production parts
29: fit samples
09: optional assembly cradles

19 packed layouts in total · 12 model plates

Designed for: Bambu X1 Carbon · 0.4 mm nozzle · PLA
Print setup: 100% scale · supplied orientations
Assembly: Separate colours · glue assembly · no AMS

v03 / Fit-test candidate

Get the matching set.

Individual and packed STL files, fit samples, optional cradles, assembly guides, previews and digital validation evidence.

Download v03 print kit

Fit samples: what to print first Printing & assembly guide

The original design is shared under CC BY-NC-SA 4.0: give credit, keep use noncommercial, note changes and share adaptations under the same license. License scope & attribution.

This original ZIP predates the notice. Save the accompanying license and scope notice with your download.

03 / Continue exploring

Follow the next
turn in the project.

Explore the project on GitHub
